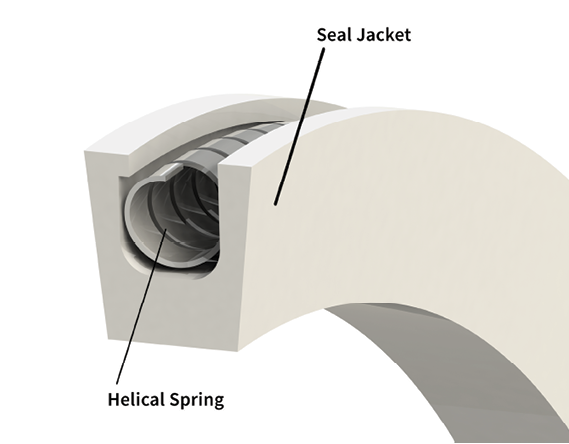

Eclipse EHF – Helical Spring |
|
|||||||
|
||||||||
Face Seals are typically used in static sealing applications. External Face Seals are often used to keep environmental media out of an exposed joint, hinge point, or pipe fitting . A PTFE Face Seal offers advantages over traditional O-Rings in terms of pressure handling, chemical compatibility, and operating temperature range. Use in cyrogenic applications is common. |
||||||||
Typical Range of Application |
||||||||
Pressure |
Temperature |
Values and ratings in this catalog are based on industry standard applications operating under ideal conditions. The customer should assume responsiblity for validation testing of performance and suitabilty of Eclipse Engineering products. Eclipse Engineering accepts no liabilty for the accuracy and applicabilty of provided information. |
||||||
Vacuum to 3,000 psi [0 to 200 bar] |
-320°F to 450°F |
|||||||
Ratings will vary based on materials and operating conditions |
||||||||
Standard Ordering example: |
||
EHF-E-234-ET006-H-P |
|
|
Non-Standard Ordering example: |
||
EHF-E-C-02953-ET006-H-P |
|
|
EHF Standard Seal Materials |
||||||||||||||||||||
|
||||||||||||||||||||
|
||||||||||||||||||||
See Eclipse Material Guide for complete list of available materials. |
EHF Standard Spring Materials |
||||||||||||
|
||||||||||||
|
||||||||||||

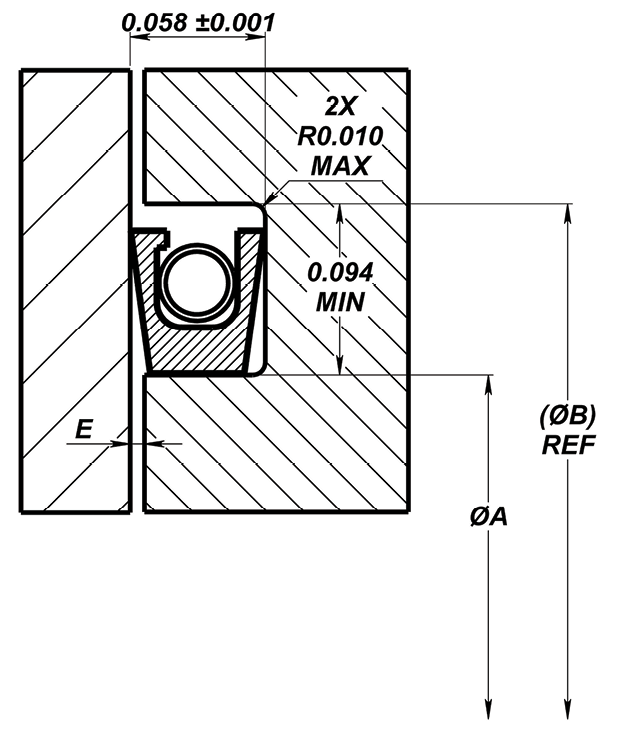

000 Series Standard Dash Numbers |
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
|
||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
000 Series Standard Dash Numbers: |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |

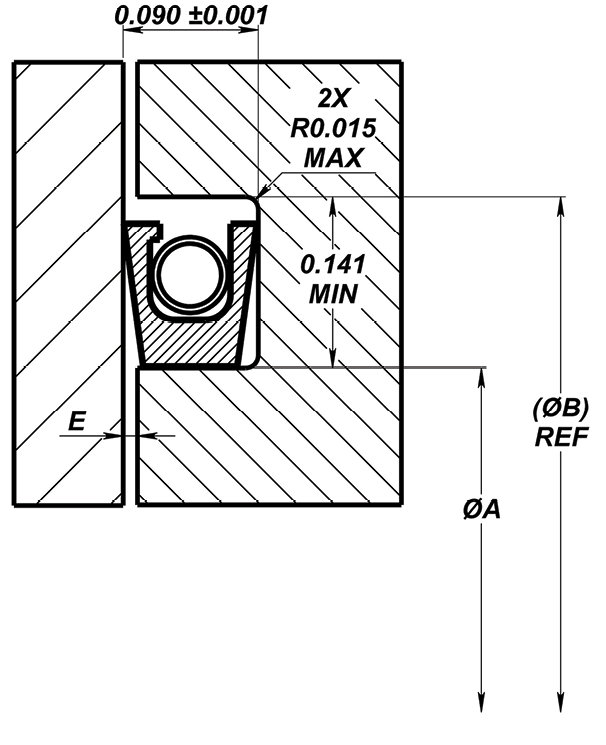

100 Series Standard Dash Numbers |
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
|
||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
100 Series Standard Dash Numbers: |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
200 Series Standard Dash Numbers |
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
|
||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
200 Series Standard Dash Numbers: |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |

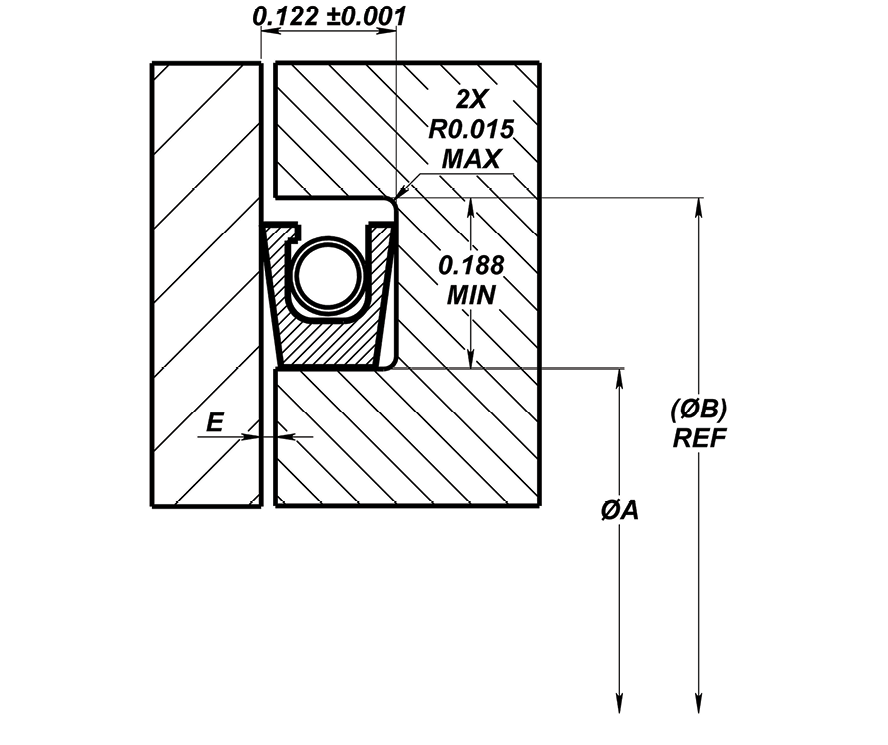

300 Series Standard Dash Numbers |
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
|
||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
300 Series Standard Dash Numbers: |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |

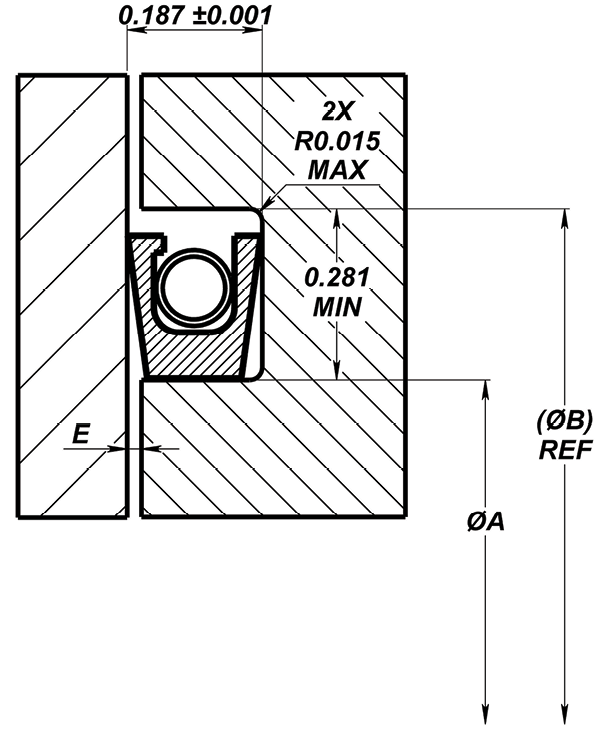

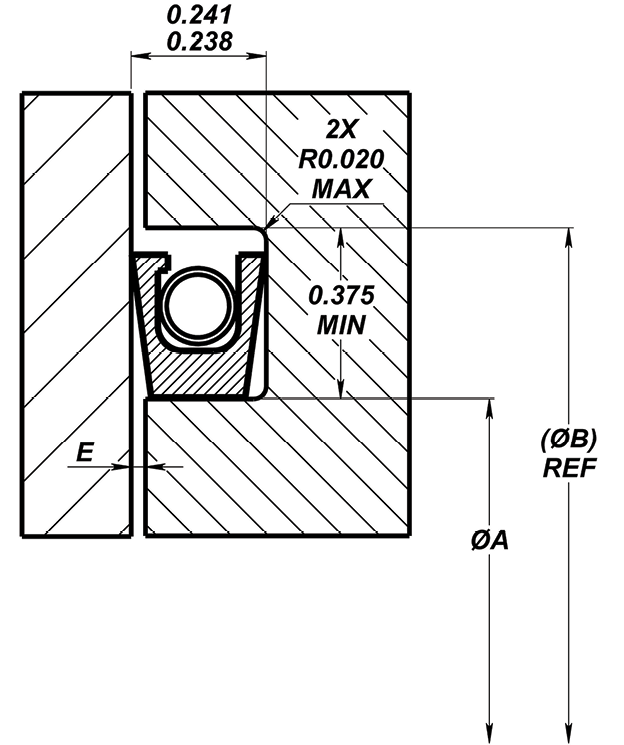

400 Series Standard Dash Numbers |
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
|
||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
400 Series Standard Dash Numbers: |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
