Eclipse EVSE – Extended Heel Cantilever Spring Energized |
|
|||||||
|
||||||||

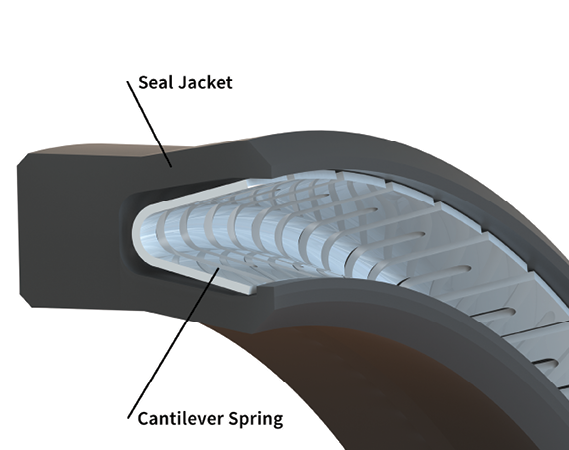

In some applications, a combination of pressure, temperature and hardware gap will give rise to a situation where the jacket degrades due to extrusion. A simple upgrade for Cantilever Spring Seals is to increase the length of the seal in order to isolate the spring side of the seal from distortion. By specifying and extended heel version, pressure ratings can be doubled over non-extended designs. This can be useful in cases where rebuilds yield larger than normal extrusion gaps or when legacy designs are pushed to higher operating pressures and temperatures to achieve greater performance. Accumulators and pressure intensifiers are common applications for extended heel Cantilever Spring Seals. |
||||||||
Typical Range of Application |
||||||||
Pressure |
Temperature |
Values and ratings in this catalog are based on industry standard applications operating under ideal conditions. The customer should assume responsiblity for validation testing of performance and suitabilty of Eclipse Engineering products. Eclipse Engineering accepts no liabilty for the accuracy and applicabilty of provided information. |
||||||
Vacuum to 10,000 psi [0 to 680 bar] |
-320°F to 450°F |
|||||||
Ratings will vary based on materials and operating conditions |
||||||||
Standard Ordering example: |
||
EVSE-P-234-LW-ET006-M-S |
|
|
|
Non-Standard Ordering example: |
||
EVSE-P-C-02953-LW-ET006-M-S |
|
|

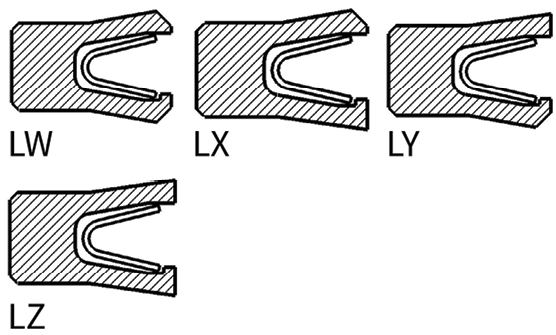

Lip Styles
(standard)
EVSE Standard Seal Materials |
||||||||||||||||||||
|
||||||||||||||||||||
|
||||||||||||||||||||
See Eclipse Material Guide for complete list of available materials. |
EVSE Standard Spring Materials |
||||||||||||
|
||||||||||||
|
||||||||||||
000 Series Standard Dash Numbers |
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
000 Series Standard Dash Numbers: |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
100 Series Standard Dash Numbers |
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
100 Series Standard Dash Numbers: |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
200 Series Standard Dash Numbers |
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
200 Series Standard Dash Numbers: |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
300 Series Standard Dash Numbers |
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
300 Series Standard Dash Numbers: |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
400 Series Standard Dash Numbers |
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |
400 Series Standard Dash Numbers: |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Consult Eclipse Engineering for all custom or unlisted sizes. |

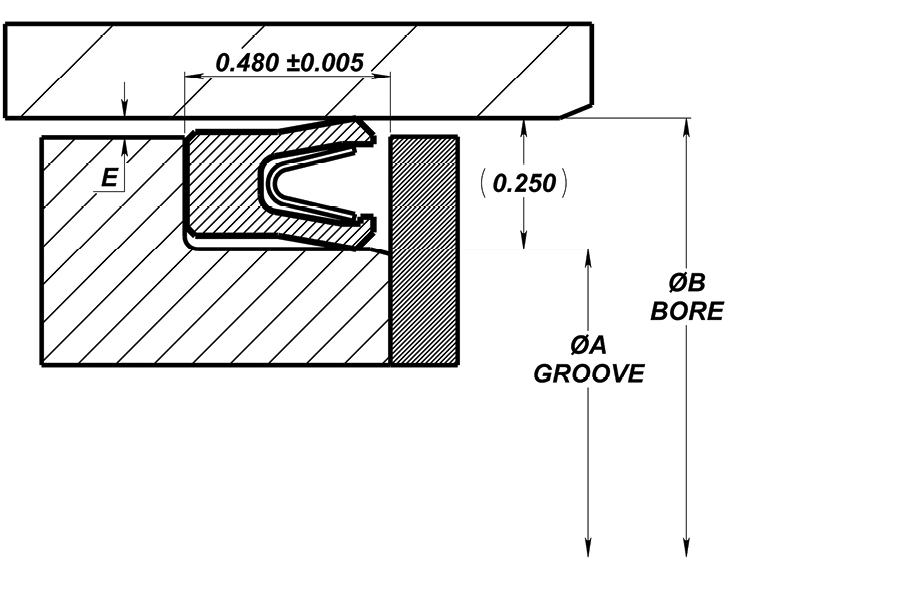

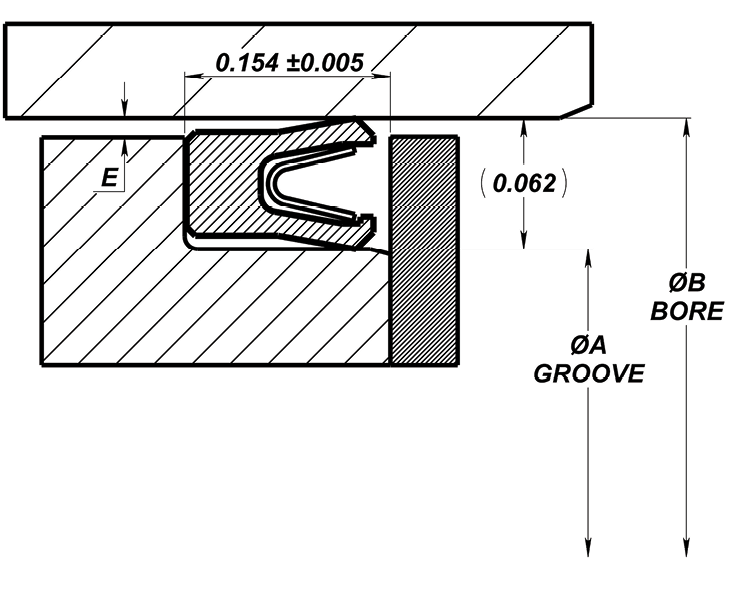

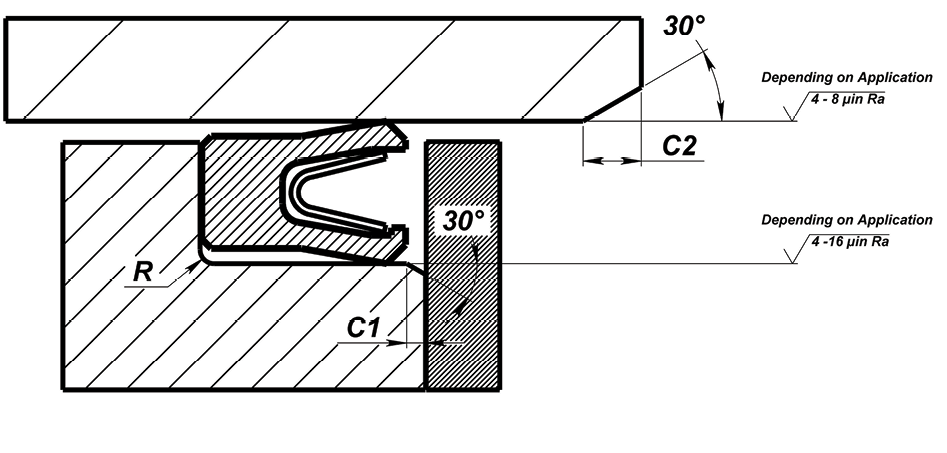

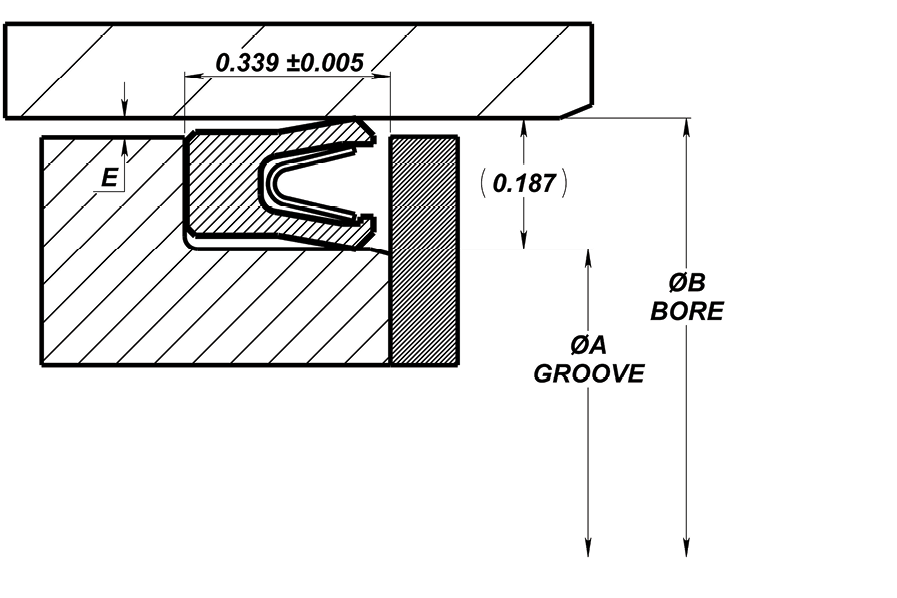

Hardware Details – Split Gland |
|||||||||||||||||||||||||
|
|||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
Consult Eclipse Engineering for application/material specific design requirements or for use in solid or non-standard glands. |

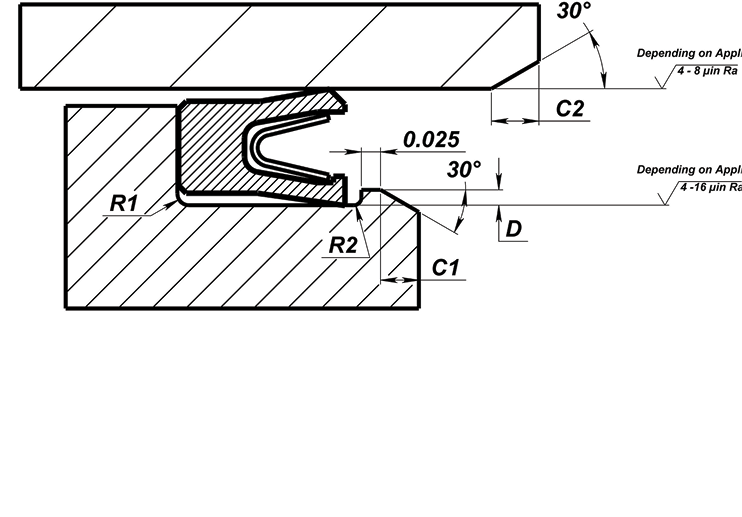

Hardware Details – Stepped Gland |
|||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||
Consult Eclipse Engineering for application/material specific design requirements or for use in solid or non-standard glands. |
|
